| Engine |
|---|
| Brand |
Scania |
| Type |
DC16 |
| Stage |
Stage IV Final |
| Power |
478 kW / 650 hp |
| Undercarriage |
|---|
| Drive line |
Hydrostatic drive systeem - GPS prepared |
| Tracks |
Oscillating with D7 chain |
| Track Rollers |
Lifetime lubricated |
| Track Pads |
800 mm - triple grouser |

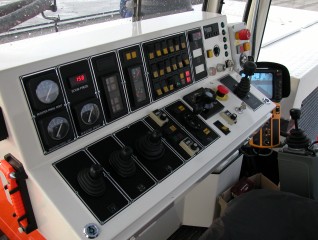

| Control |
by means of electric joysticks - high / low - load control |
| Travel speed |
0 - 5.000 m/hours |

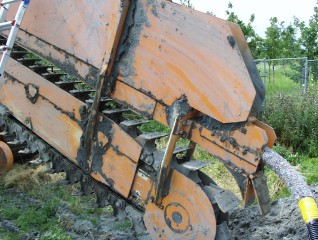

| Trenching System |
|---|
| Drive line |
Hydrostatic drive system - GPS or laser prepared |
| Hydraulic motors |
2x high torque motors - 3500 cc |
| Final drive |
Lifetime seals |
| Trench width |
280 - 320 mm |
| Min. trench depth |
3.200 mm |
| Max. trench depth |
8.000 mm |
| Control |
by means of electric joystick - stepless adjustable |
| Digging speed |
0 - 5.000 m/s |
| Dimensions |
|---|
| Length |
12.500 m |
| Width |
3.000 m |
| Height |
3.150 m |
| Weight |
42 tonne |
Options
- Engine speed 1.600 rpm
- Hydraulically extendable tracks
- Temperature controlled fan, self cleaning
- Automatic greasing system
- Storage platform for pipe coils
